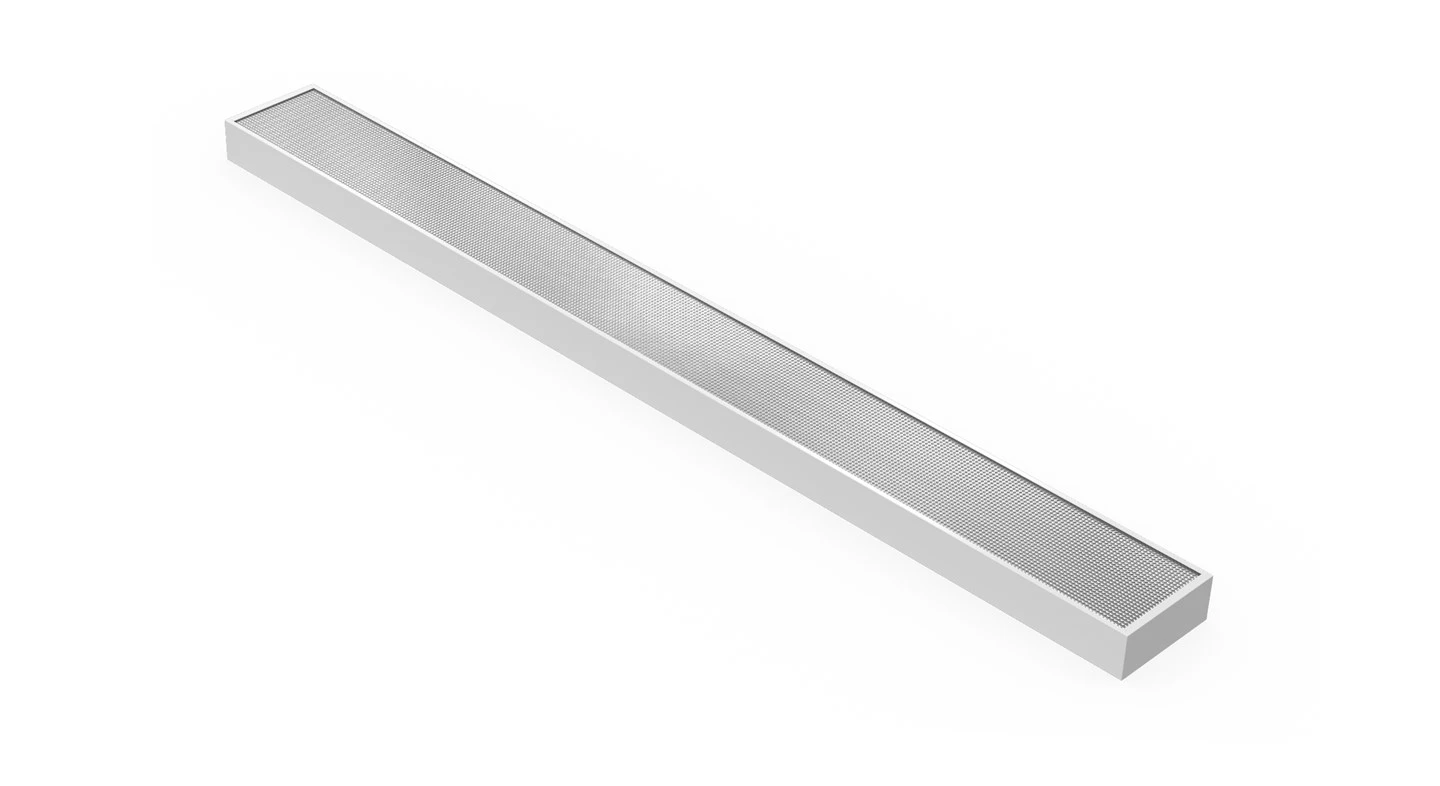

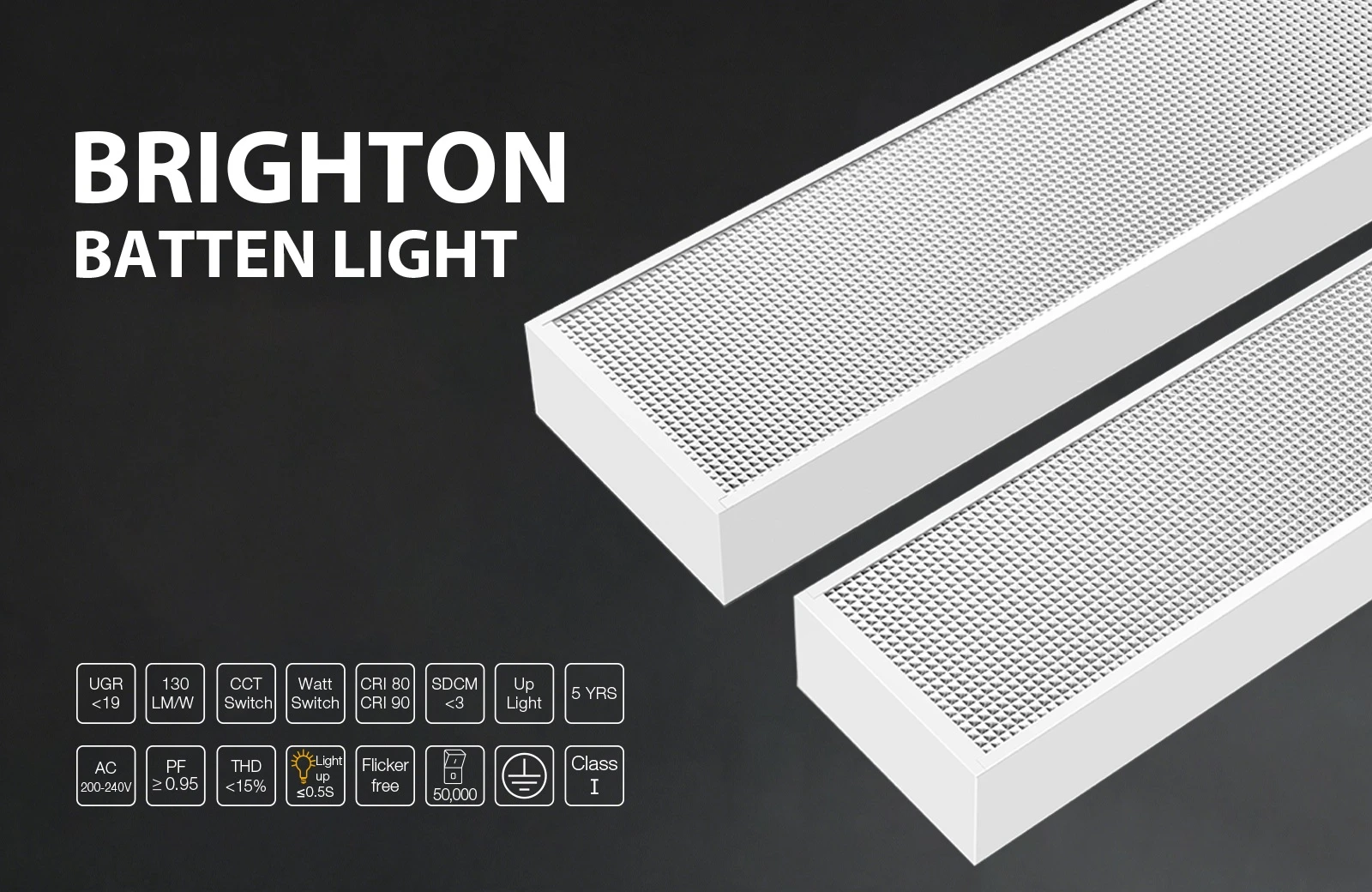

Brighton UGR Batten Light

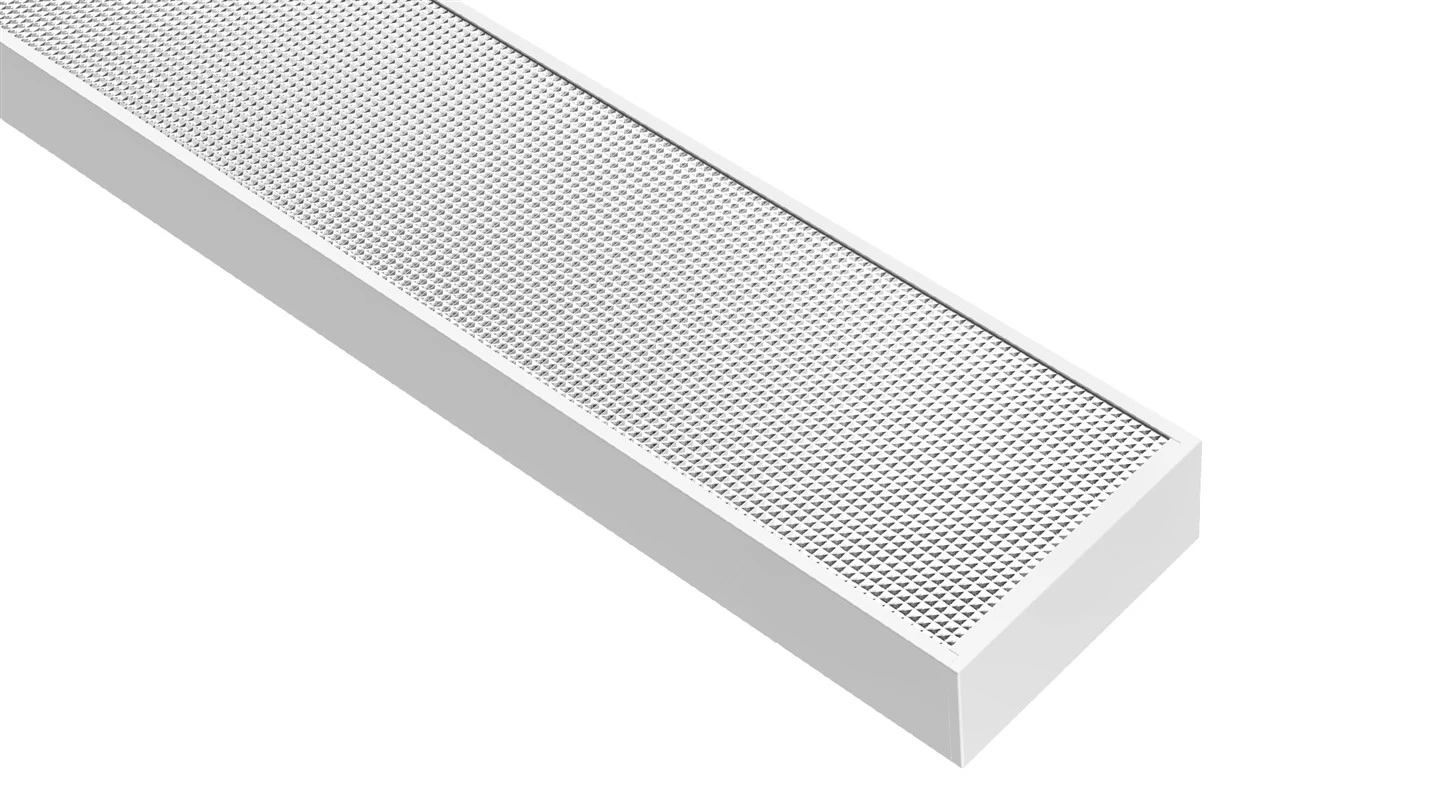

Brighton-Batten2

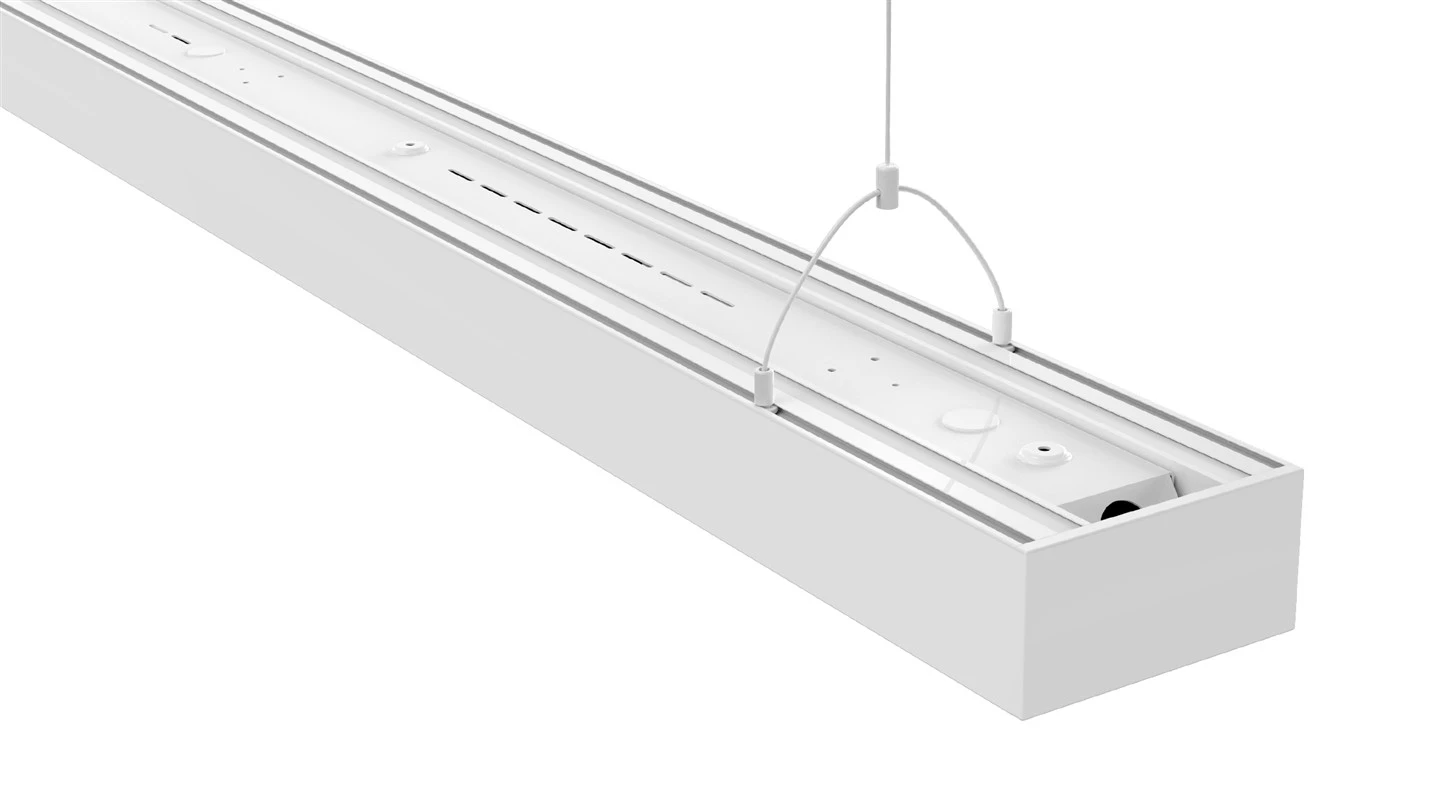

Brighton-Batten3

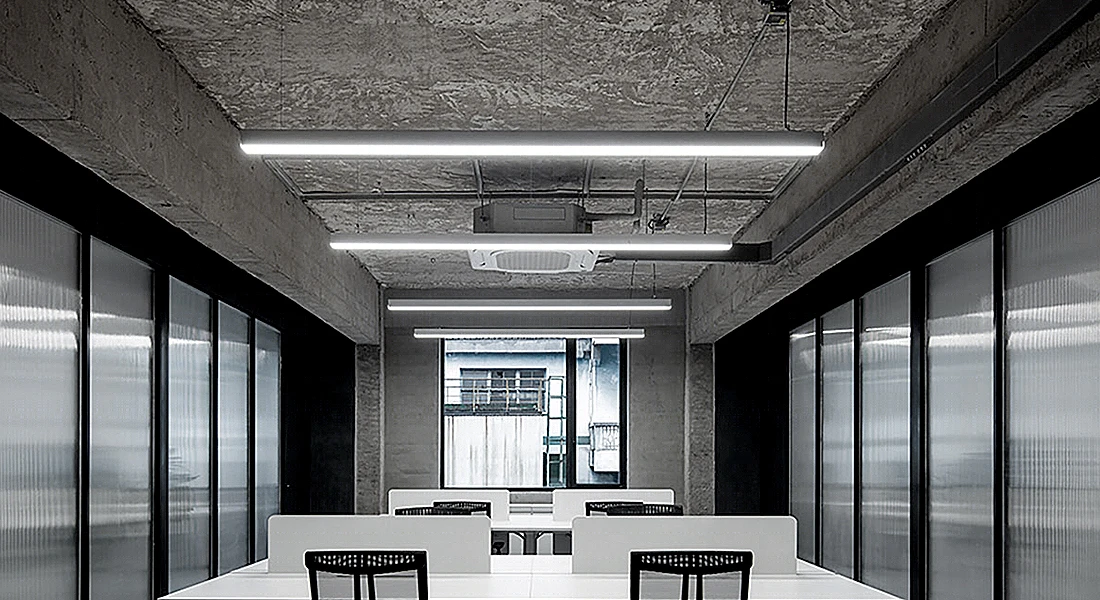

Brighton-Batten4

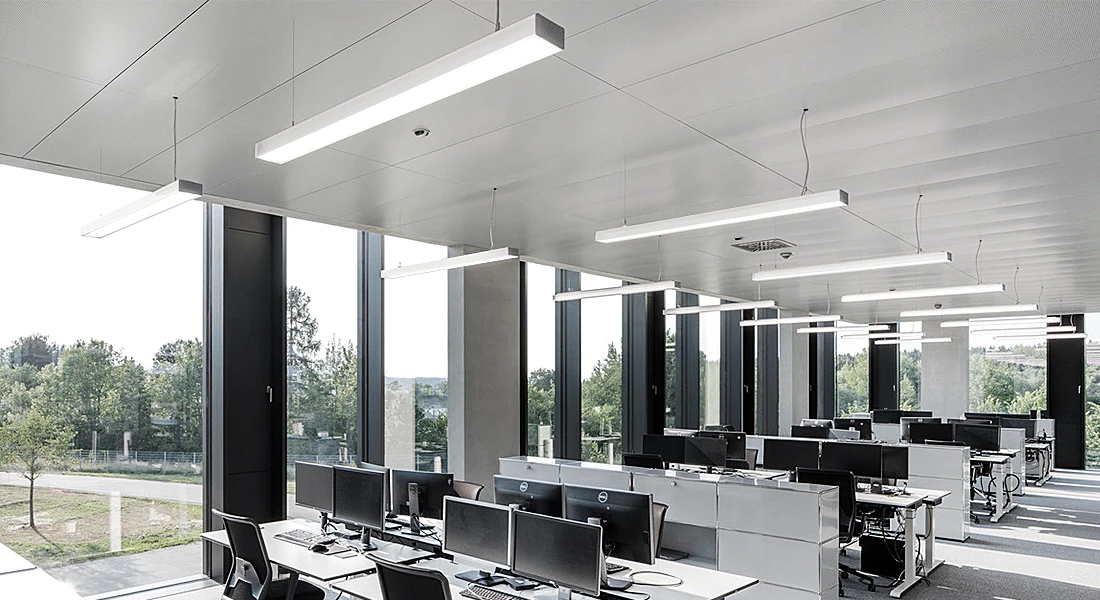

Brighton-Batten5

چۈشەندۈرۈش:

Brighton باتارېيە نۇر قۇرۇلمىسى ئەڭ يېڭى لايىھە بولۇپ ، ئوپتىكىلىق UGR نى ئەمەلگە ئاشۇرۇپلا قالماي<19, but also use more costive design solution. Brighton battens lamp use the prismatic diffuser the optical material, and also use high-power LED and secondary lens as the light source. Brighton batten uses a back towed junction box for drivers and components installation,and also, the junction box acts as a installation box for the lighting unit. The Junction box can withstand up to four times weight of the lighting unit, which not only provides effective quality insurance, but also makes the product easy for installation.

ئالاھىدىلىكى:

>UGR<19 with prismatic diffuser

>LED قوزغاتقۇچنى قوزغىتىدۇ

>120mm|كەڭلىكى 150mm

>Ra80 ياكى Ra90 ، SDCM<3

>UP نۇر @ تۇراقلىق 2X4W تاللاش

>سىملىق كىرىش ئۈچۈن ئاخىر ياكى كەينى بېس

>تاللاش سۈپىتىدە ھەر خىل ئىقتىدارلار بار

>4ft / 5ft / 6ft ئۆلچىمى بار

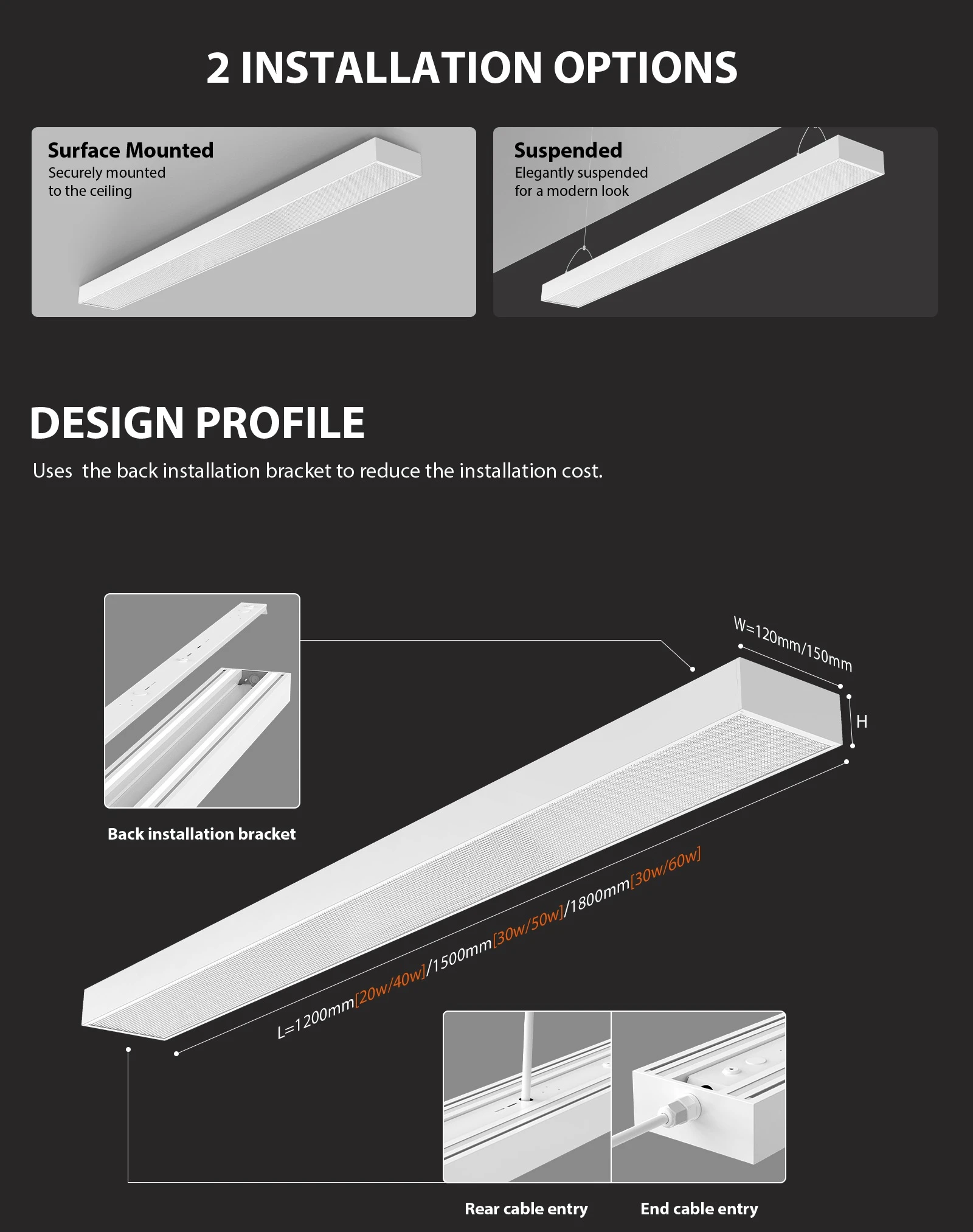

>قوبۇل قىلىنغان / Surface قاچىلاش / توختىتىش ئورنىتىش

>5 يىل كاپالەت

Send Inquiry

Download

Description

Technical Parameters

تونۇشتۇرۇش:

Brighton Batten LED چىرىغى 120 مىللىمېتىر ، كەڭلىكى 150 مىللىمېتىر ، UGR بىلەن تەمىنلەيدۇ<19, and wattage and CCT switches as standard features of strip lights. Brighton battens led light are widely used by customers in office, commercial, education, and other applications.

مال-مۈلۈك:

Brighton UGR Batten 150mm بىزنىڭ ئەڭ يېڭى باتارېيە چىرىغىمىز ، يۇقىرى ئىقتىدار ۋە ئەۋرىشىملىكى ئۈچۈن لايىھەلەنگەن. كەڭلىكى 150 مىللىمېتىر ، بۇ نۇر ھەر قانداق بوشلۇققا ئۈزۈل-كېسىل بىرىكىپ ، پارقىراقلىقى تۆۋەن (UGR)<19. Its advanced LED driver features a power and CCT switch, allowing you to customize brightness and warmth to suit your needs. Our LED strip lights are perfect for a variety of applications, from office/commercial/industrial to campuses, blending technology with stylish design.

زاكاز كودى	كەڭلىك	Rated Power	LM / W.	Lumen	SDCM / Ra	Watt / CCT Switch	مەھسۇلات ئۆلچىمى	GW / CTN	QTY / CTN
BT500 - 04W-DT1-40F01	120mm	20W/40W	typ.130	typ.2600 / 5200	<3 / Ra80/90	Y	L1200xW120xH60	8.84kg	4pcs
BT500 - 05W-DT1-50F01	120mm	30/50W	typ.130	type.3900 / 6500	<3 / Ra80/90	Y	L1500xW120xH60	11.12kg	4pcs
BT500 - 06W-DT1-60F01	120mm	30/60W	typ.130	type.3900 / 7800	<3 / Ra80/90	Y	L1800xW120xH60	14.52kg	4pcs
BT510 - 04W-DT1-40F01	150mm	20/40W	typ.130	typ.2600 / 5200	<3 / Ra80/90	Y	L1200xW150xH60	11.12kg	4pcs
BT510 - 05W-DT1-50F01	150mm	25/50W	typ.130	type.3900 / 6500	<3 / Ra80/90	Y	L1500xW150xH60	13.40kg	4pcs
BT510 - 06W-DT1-60F01	150mm	30/60W	typ.130	type.3900 / 7800	<3 / Ra80/90	Y	L1800xW150xH60	16.80kg	4pcs
