ماگنىتلىق نۇر

Magnetic Light

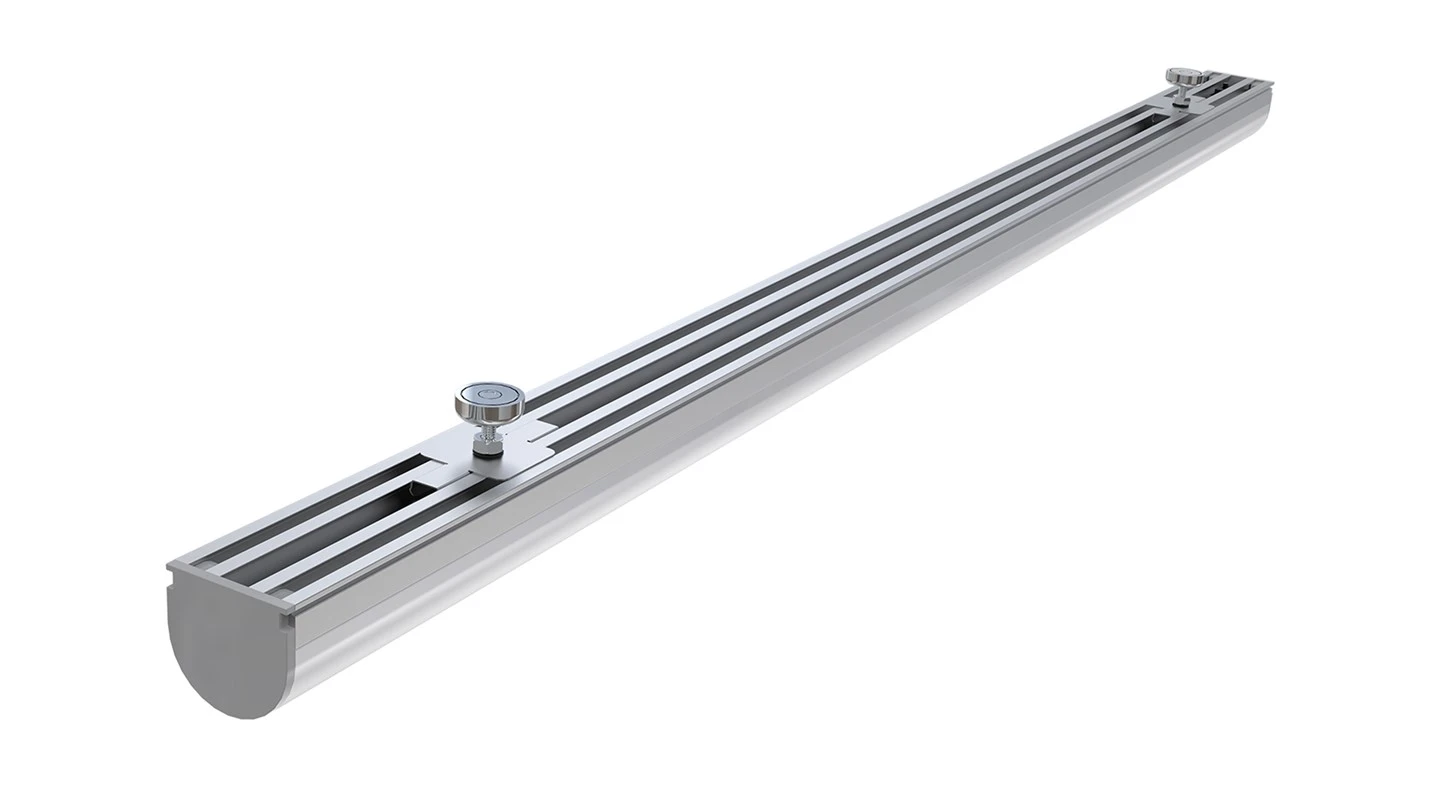

Magnetic Retrofit--2

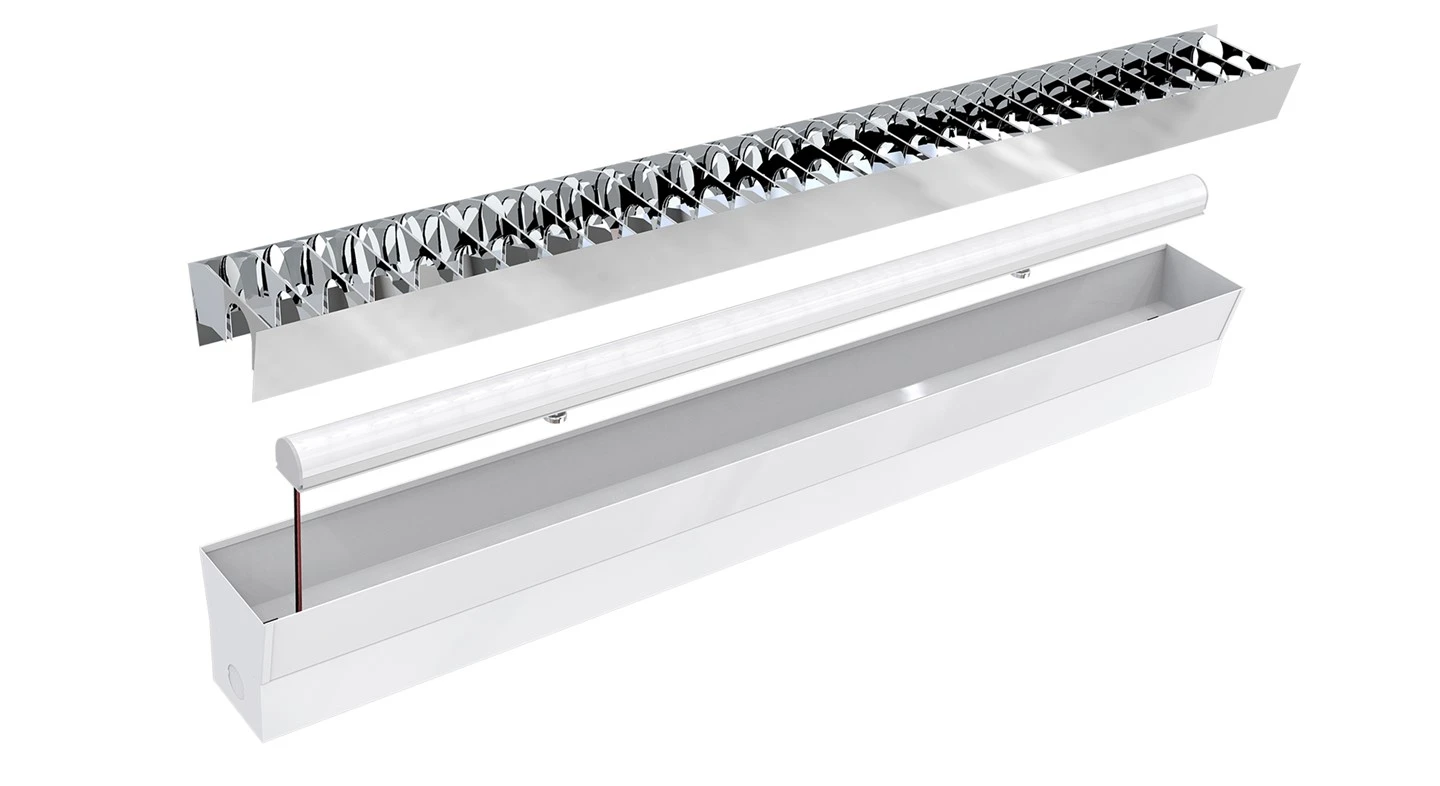

Magnetic Retrofit--3

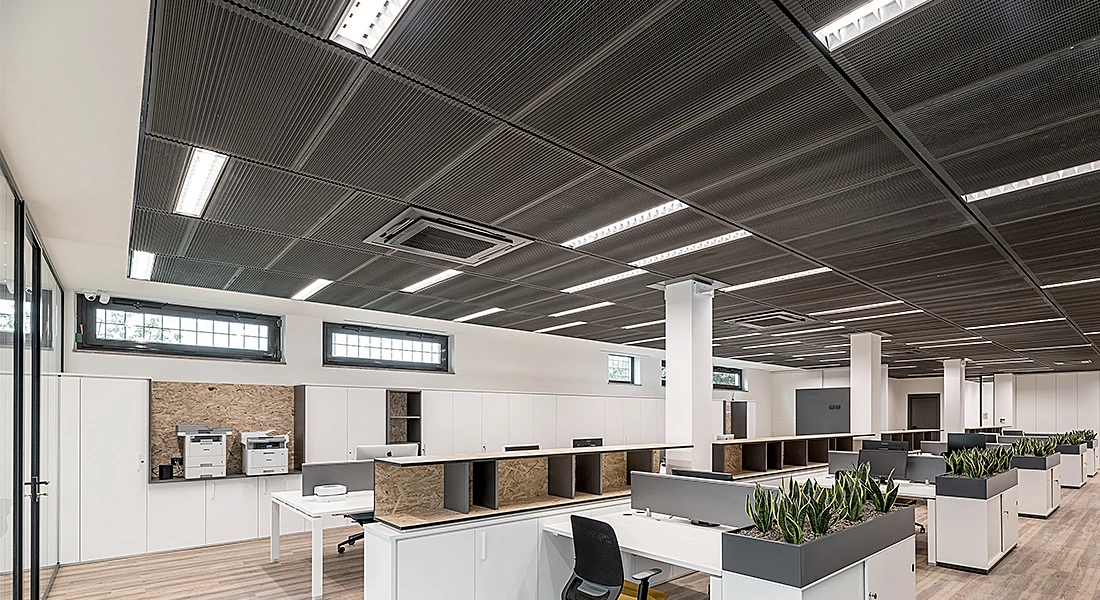

Magnetic Retrofit--4

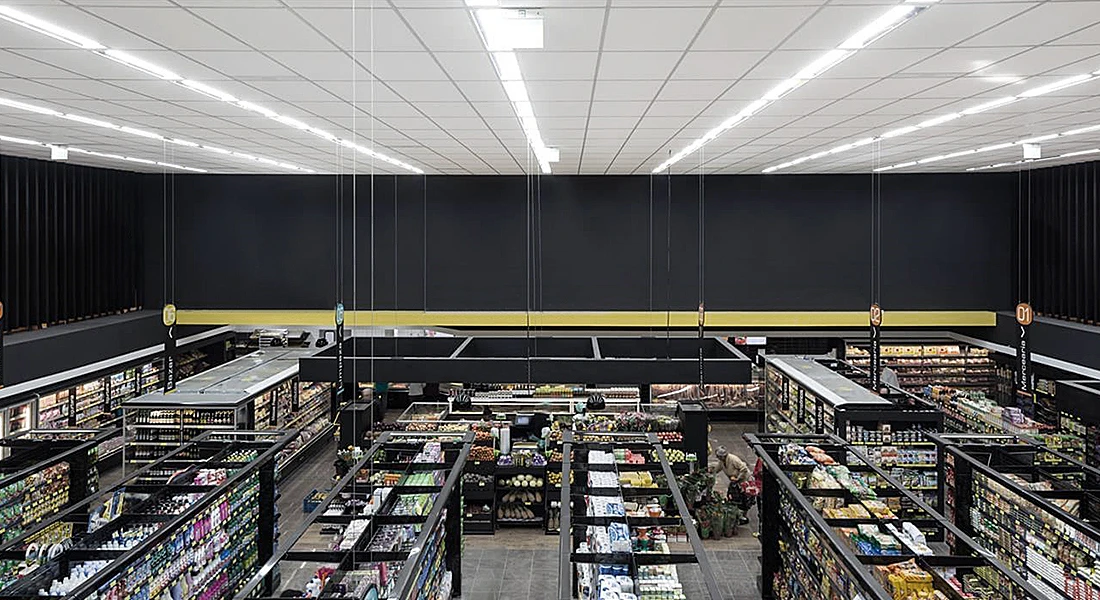

Magnetic Retrofit--5

چۈشەندۈرۈش:

Magnetic LED Retrofit is an LED module with up to 130lm/w (Ra>90, R9>50, SDCM<3). Magnet tool-free installation, easy to maintain, saves labor costs. It is widely used to replace the traditional T5/T8 fluorescent tube light inside grille lights in offices, schools, hypermarkets, and retail stores.

ئالاھىدىلىكى:

>پاتېنت لايىھىسى ئەنئەنىۋى T5 / T8 فلۇئورېسسېنسىيە تۇرۇبىسىنىڭ ئورنىنى ئالىدۇ

>قۇۋۋەت ۋە رەڭ (3CCT) مەيدانى - تەڭشىگىلى بولىدۇ

> Up to 130lm/w@4000lm (Ra>90,R9>50, SDCM<3)

>ماگنىت قورالى - ھەقسىز قاچىلاش ، ئاسراش ئاسان ، ئەمگەك تەننەرخىنى تېجەيدۇ

>فتور فېرمېن چىرىغىغا سېلىشتۇرغاندا% 80 ئېنېرگىيە تېجەيدۇ

Send Inquiry

Download

Description

Technical Parameters

تونۇشتۇرۇش:

Toppo Magnetic LED Retrofit is a time-saving alternative to directly replace fluorescent lamps with LEDs. High efficacy up to 135 lm/w (Ra>90, R9>50, SDCM<3), power switch from 14-30W, 3CCT switch from 3000K/4000K/5000K, various sizes of L540mm, L1160mm, L1460mm. With magnetic, tool-free installation, in just 1 minute, your existing fluorescent tube fixtures (recessed, strip, wrap, etc.) can be converted to energy-efficient, long-lasting LED lights while preserving the look of your space.

زاكاز كودى	Rated Power	LM / W.	Lumen	SDCM / Ra	IP Class	مەھسۇلات ئۆلچىمى	GW / CTN	QTY / CTN
TU100 - 02N-PT1-24F10-01	14W/24W	Type.120	typ.1680 / 2880	SDCM<3/Ra80,90	IP20	L540xW26xH24	9.91kg	25pcs
TU100 - 04N-AT1-30F10-01	14W/30W	Type.130	typ.1820 / 3900	SDCM<3/Ra80,90	IP20	L1160xW26xH24	14.93 كىلوگىرام	25pcs
TU100 - 05N-AT1-30F10-01	14W/30W	Type.130	typ.1820 / 3900	SDCM<3/Ra80,90	IP20	L1460xW26xH24	17.4kg	25pcs

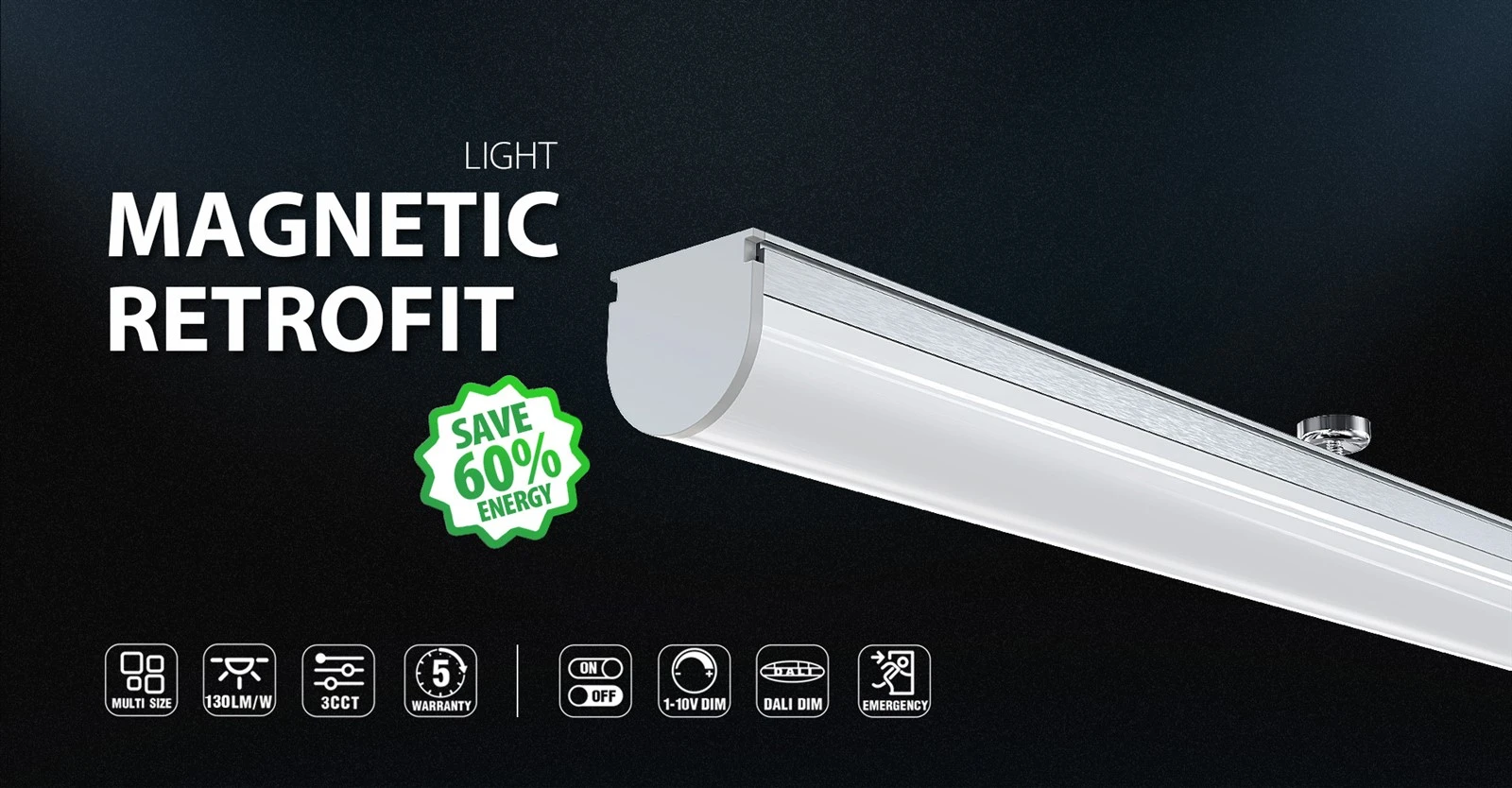

Magnetic Retrofit -1

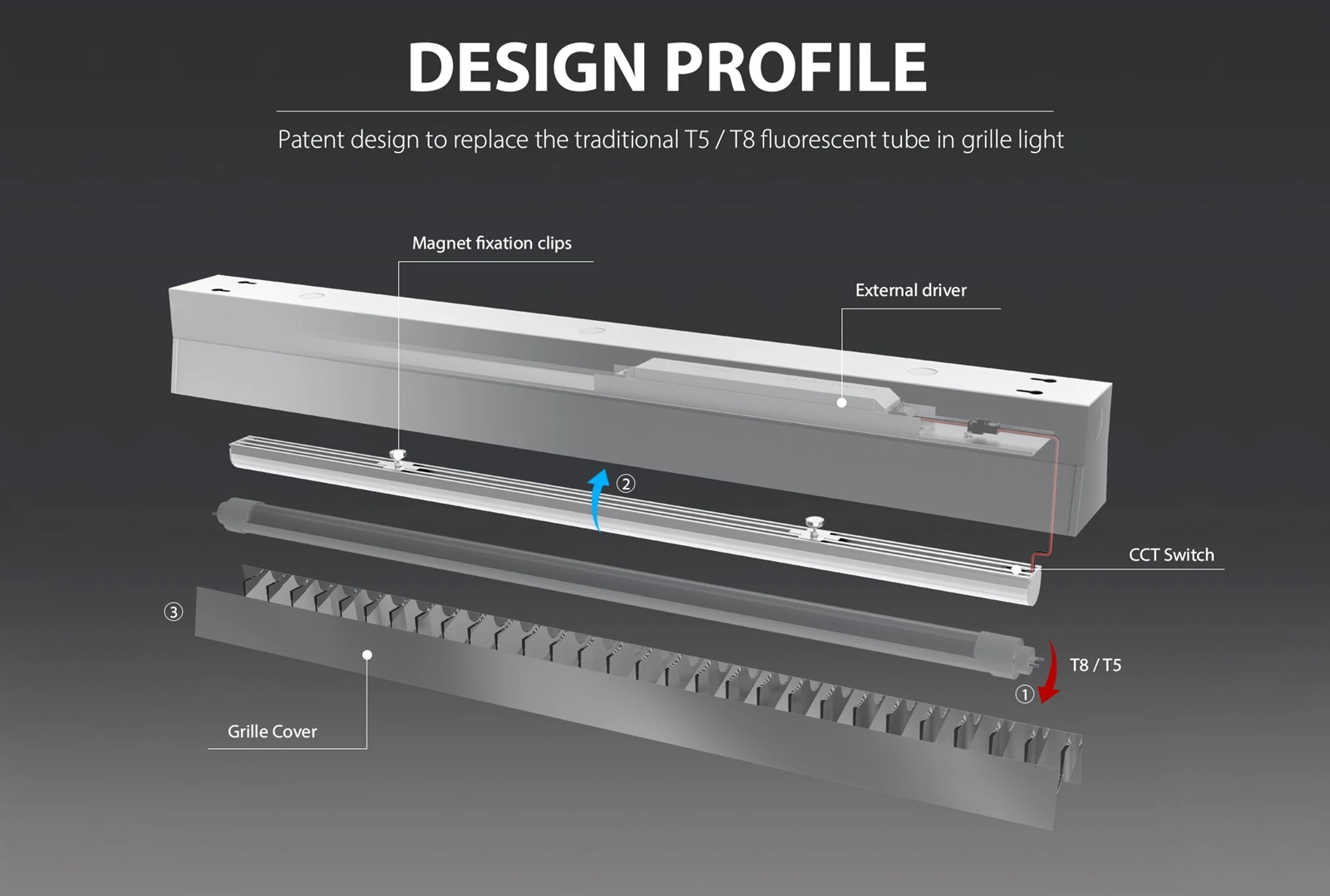

Magnetic Retrofit -2

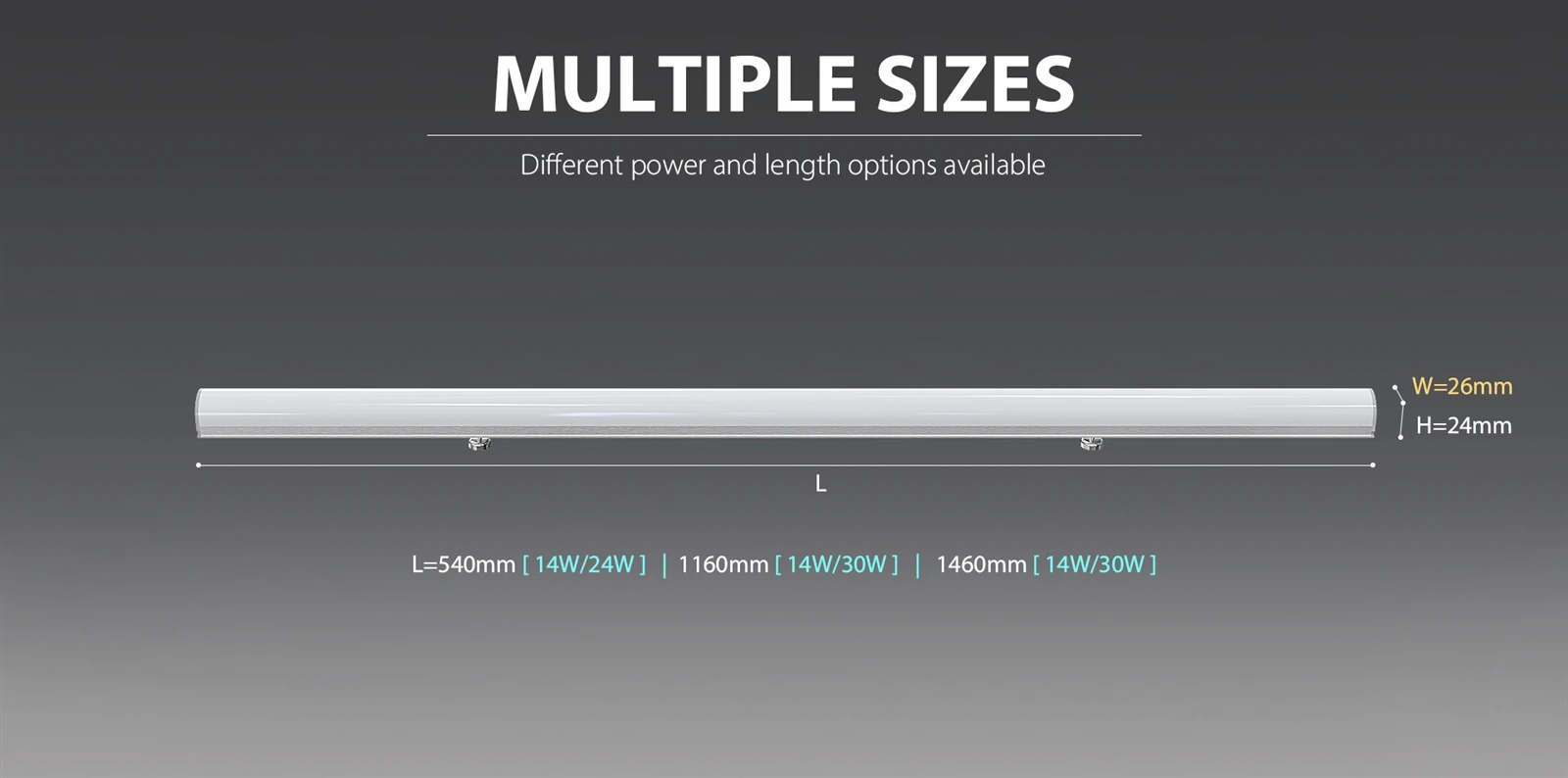

Magnetic Retrofit -3
